Transparent PET Silicone Coated Release Liner
Description:
PET release film is also called PET silicone oil film. A layer of silicone oil is applied on
the surface of the PET film to reduce the adhesion of the PET film surface and achieve
the release effect.
Can be divided into single-sided release film and double-sided release film.
According to the release force, it can be divided into a light release film, a medium release
film, and a heavy release film.
Our company is equipped with a quick slitting machine that can be divided and sliced
according to customer specifications.
Features:
► High temperature resistance, up to 180℃
► Easy peel off when remove the release film
► High residual adhesiveness rate(≥90%) to prevent the influence of
silicon transfer on products
► Make products' surface more flat
Applications:
♦ Used for self-adhesive waterproof membranes and other waterproof materials,
adhesive tapes
♦ Used for cables production, packaging materials
♦ Used for cast materials, electronic applications, ceramic capacitors, window materials.
printing, electronic, advertisements
Phameter:
| Products Name | PET release film | Spec. | 0.023mm*1000mm |
| Detection Methed | Q/TPXP 1-2013 | Date | 2020.9.26 |
| NO. | Item | Factory Requirement | Detection Value | Individual Determination |
| 1 | Appearance | No bubbles, no stains, no damage, no impurities | Qualified | Qualified |
| 2 | Spec. | Width | 1000±5mm | 1001 | Qualified |
| | | Thickness | 0.023±0.005mm | 0.023 | Qualified |
| 3 | Max.F (N/50mm) | TD (CD) | ≥150 | 192 | Qualified |
| | | MD | ≥150 | 156 | Qualified |
| 4 | Elongation (%) | TD (CD) | ≥40 | 87 | Qualified |
| | | MD | ≥40 | 56 | Qualified |
| 5 | Tensile Strength(Mpa) | TD (CD) | ≥30 | 124 | Qualified |
| | | MD | ≥30 | 108 | Qualified |
| 6 | Subsequent Adhesion | % | ≥90 | 92 | Qualified |
| Detection | Qualified |
About Upass:
Upass, founded in 2008, now as a governing unit of China Building Waterproof Association,
a vice chairman unit of Professional Committee of China Modified Plastic Association,
an enterprise with Triple A credibility in China Plastic Association, not only assists the
development of the relevant industries, but also upholds the conception of sustainable
development by successive technological innovation. Upass so far has acquired over
100 of intellectual property rights.

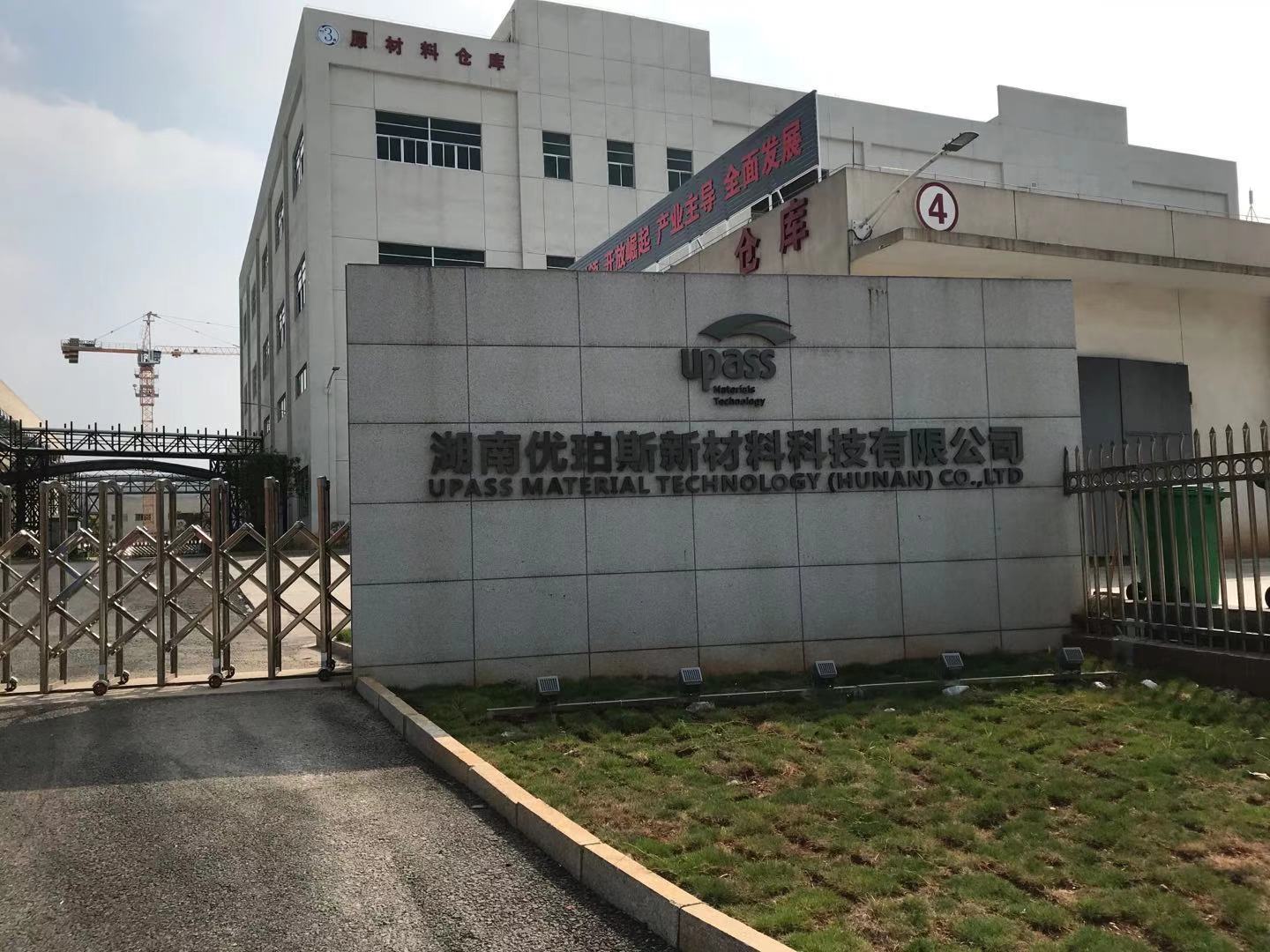

1. Taicang Production Plant:
2. Chenzhou Production Plant:
Certificates:
